WEINIG Powermat 2400: The high-end solution for industrial production.

WEING Powermat

The variety of products in industrial series production is immense. However, no matter which market you are servicing, you will always have the right machine concept in the Powermat 2400. The Powermat 2400 offers you both a high-performance platform for the demanding requirements of everyday multiple shift operation as well as great flexibility. This is assured by a modular system with a wide range of aggregates, tools and feed speed solutions. The modular design and large number of options enables the most diverse applications.

Whether planing beams at 10 m/min or producing mouldings at 100 m/min; whether 4,000 rpm or up to 12,000 rpm – we can build the ideal Powermat 2400 for your requirements. With spindle speeds up to 12,000 rpm, jointing technology and strong feed systems, the system provides optimal conditions for series production in the legendary WEINIG surface quality. The Powermat 2400 is truly state-of-the-art technology in profiling.

The Powermat 2400 already fulfills high demands as a stand-alone machine. However, the full potential could be far greater. By upgrading the machine with the PowerMech automation system, you can increase efficiency significantly further. The PowerMech modules are the key to maximum profitability and optimal productivity. The functional units range from an infeed or outfeed system through scanning and conveying to packing and stacking. With the high level of automation you can decide how far you want to exploit the amazing capabilities of your Powermat 2400.


Technical Details

Resource management

WEINIG challenges itself to manage resources efficiently in a number of ways – including via modern planing technology, which opens up the potential for material savings. This particularly makes solid wood construction timber (KVH) and glulam timber, which are pre-planed in order to make it easier for the scanner to examin the surface, more profitable.

The opposing floating spindles that follow the curve of the wood plane the glulam lamellae, for example, in parallel in the same width and this reduces the chip removal to a minimum.

The gaps between the work pieces required by the floating spindles increases the risk of impact on the first bottom spindle. The spindle mounted at a 30° angle to the machine table avoids this effect. Heavy pressure elements can also be used from above, which enable minimal chip removal at the horizontal spindles.

Jointing system

Jointing technology and hydro tools produce excellent surface quality. Together with the WEINIG PowerLock system, they are unbeatable. In the Powermat 2400, you can choose this combination and easily benefit from it: Jointed tools developed by WEINIG ensure that all knives in the cutterhead have an absolutely identical cutting circle.

This means PowerLock produces excellent surface quality at up to 10,000 rpm and maximum feed speeds! Both the straight jointer for four-sided planing – automatic or manual operation – and the fully automatic profile jointer can be used. WEINIG know-how and experience guarantee complete process reliability of our leading edge technology.

Machine infeed

Depending on the condition of the raw material, it may be advisable to have a strong machine infeed. Particularly with bent, damp or heavy pieces, it is advisable to have a strong machine infeed that supports the transport of parts through the machine.

The 3-roller infeed ensures optimal feeding force for strips and boards, particularly when combined with infeed mechanization. A heavier version is available in the 4-roller infeed with two opposing roller pairs. In either case, it is not possible to straighten the work piece.


Options for extension

WEING Powermat

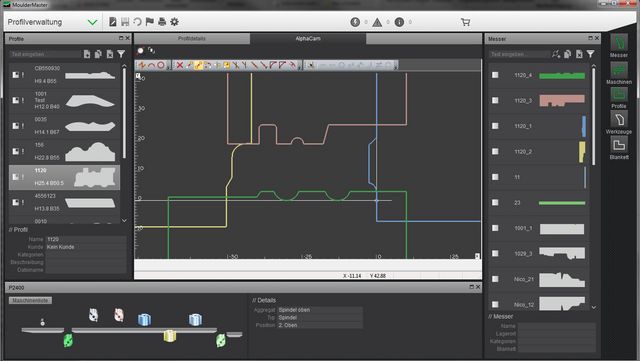

Moulder Master for perfect organization of your working environment

The Moulder Master connects all processes upstream of production to optimize the entire production process.

Learn more


Setup assistance SmartTouch

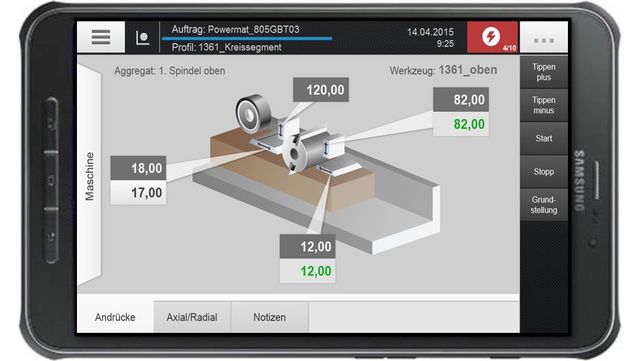

With SmartTouch, WEINIG offers an innovative solution which in addition to the main control unit offers the display of setup information on a mobile tablet.

Learn more


WEING Powermat

WEINIG system

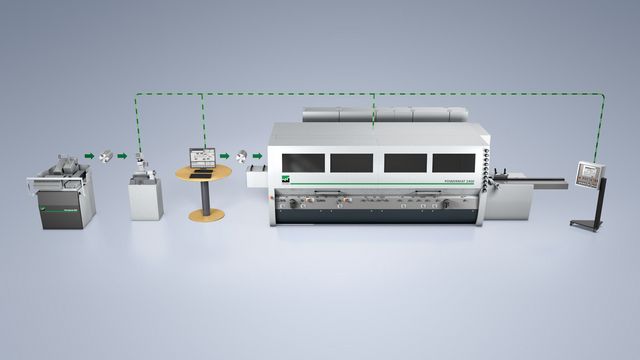

The WEINIG System enhances your Powermat 2400 to become a highly efficient overall concept that raises productivity. The individual system modules fit together like building blocks to produce the perfect result.

Learn more


WEING Powermat

Added value with rods

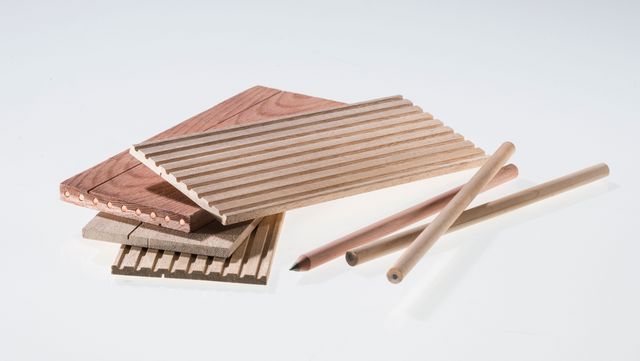

When it comes to producing rods, the Powermat 2400 impresses with its outstanding repetition precision and high surface quality. The PowerLock tool, PowerCom axis control and a feed system specially adapted to the production task make the Powermat 2400 the best performing profiling machine in the world.

Learn more


WEING Powermat

Jumping spindle

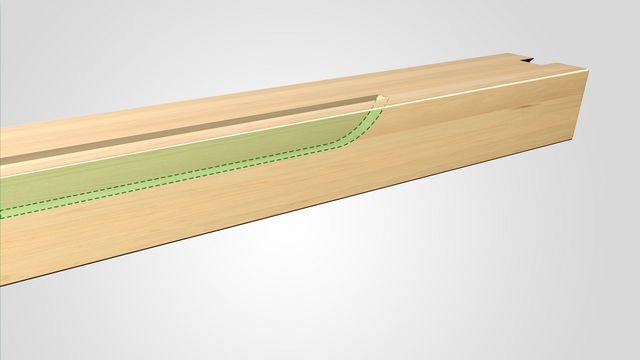

Underpass axes for pallets, barrel staves and all other non-continuous grooves are a challenge for production. With the CNC-controlled WEINIG jumping spindle, you can integrate this demanding processing reliably into your production process and achieve high cycle rates.

Learn more
