WEINIG CNC processing center: A flexible and secure path to the future
The WEINIG CNC processing center is designed for surface and beam parts from solid wood for the highest quality and flexibility requirements. Windows, doors, facades, conservatories and even furniture construction and assembly construction are only a small part of the current areas of application.
For trade or industry, our large portfolio of processing units, mechanization options and software solutions means that we can meet all needs in the individual construction models. All machines can be optimally equipped for all individual application and performance requirements. In addition, WEINIG supplies everything related to the CNC processing center up to project planning of complete solutions. Everything from a single source, everything from WEINIG
WEINIG can offer you the benefit of the experience of more than 3,000 window machine installations. This ensures that you are optimally equipped for the requirements of the future.
WEINIG Conturex series
Profiling series for trade and industry
- Complete processing in one clamping process
- Processing without processing times even for small lot sizes
- Automation enables less manpower in production
- Maximum flexibility as a result of the large tool magazine
- Energy feedback modules means savings in energy
Conturex SYSTEM lines
Linked system solutions for industries with high output
- Networking of individual production steps based upon proven Conturex technology
- Everything from a single source. WEINIG - Your partner in solid wood processing
- Customized complete solutions for optimal profitability and quality
“All types of corner joints are possible”
Austrian carpentry firm Nagl specializes in windows. To ensure the required precision, the company has worked with WEINIG technology for many years.
Axamer Lizum is not only the largest ski resort in the vicinity of Innsbruck. It is also home to Nagl. The small business supplies primarily private customers with wood and wood/aluminum window elements. Some 2,500 units are designed and produced each year, comprising windows as well as many large lift/slide doors. The company has been using WEINIG machines in its production for 40 years. However, requirements in the market have changed dramatically in recent years. Today, individually designed windows, special sizes of up to 6 x 12 meters and stronger profiles due to multiple glazing are a reality at Nagl. “Our old WEINIG system could no longer meet these requirements so we had to look around,” says Franz Nagl. Ultimately, they decided on WEINIG technology once again. “WEINIG plays a leading role in the window manufacturing sector. So it made sense to stick with the brand,” says Franz Nagl.
The new Powermat 700 moulder and Conturex Compact CNC machine are designed specially for profitable window production for smaller operations. An important criterion for switching to the new technology was the potential for flexible single-part production with relatively short set-up times. The two machines are now responsible for the complete processing of windows. The Powermat 700 performs pre-planing on all four sides of the window scantlings. Then, the Conturex Compact “takes over” and completes all required work stages in a single pass. The tool changer provides space for 70 tools for milling, drilling or profiling. Window frames can be produced in their entirety. “With the Conturex, we can produce all corner joints required by the market as well as processing slanted and round work pieces,” says a delighted Franz Nagl.
Heading for success as a family: Gerhard, Verena, Franz and Hildegard Nagl (from left)
Source: Tischler Journal
Three heroes – one vision: 5-axis CNC Nesting machining!

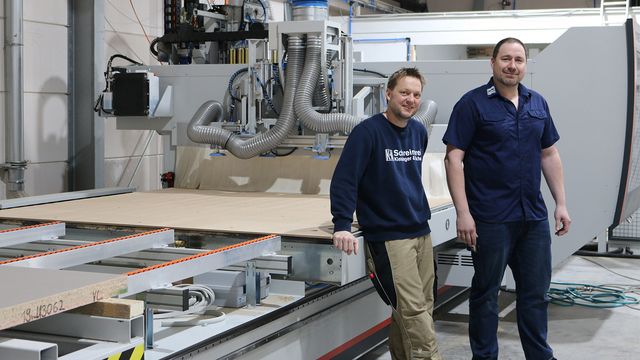

A story with three heroes: Sascha Kleisinger, his best friend Alexander Michel and the new NEXTEC 7735. These two carpenters founded their mutual company, the K&M Carpentry Shop, 17 years ago in a cowshed with 200 sq. meters of floor space.
From the very beginning the common idea was: “We want to build high quality, sophisticated, beautiful furniture.” Today the shop is located on a 6,000 sq. meter lot and has 30 employees. The prerequisite for such success stories is creative and rapid reaction to changes in the market. Sascha Kleisinger: “After just a short time, we started making plans to industrialize our carpentry shop, without sacrificing our positioning as a craft shop.” This was the time to take the third hero on board. The new NEXTEC 7735 from HOLZ-HER. This ingenious machine concept was the basis for the planned further growth perspectives. As the two carpenters saw their first NEXTEC demonstrations, they knew: That is precisely the CNC technology we were looking for.
On the 15 meter long machine with elevating table and conveyor belt, Sascha Kleisinger and Alexander Michel produce furniture components for regional carpentry shops as capable service providers. For this purpose a 1,000 sq. meter building was rented and a private company established with the name: Rheinhessen-Möbel [Rheinhessen Furniture] “This clearly shows that we are not competitors, but rather partners for our colleagues with fewer machines. But we also want to work for kitchen studios, who are otherwise dependent on the long delivery times in the industry.” K&M serves private customers exclusively.
Saws, edgebanders and CNC machining centers from HOLZ-HER were in operation at these successful carpenters from the very beginning. “This was the key to building up a bond of trust in the course of years. Technology, performance and service provide a perfect overall picture for us. This is also why we were confident in putting our full trust in a top machine like the new NEXTEC.“
Everything in hand
Maximum production depth is indispensable for Swiss window manufacturer Adi von Euw to maintain high-quality manufacturing. However, this only requires a small team since the degree of automation in the operation is enormous.
Adi von Euw wanted direct access to all stages of production of his high-quality windows. That is why every process stage from raw materials storage to surface treatment has been relocated to the Rothenthurm factory. This also includes metal processing for the company's own wood/aluminum systems. At the same time, the Managing Director has consistently driven forward the development of operations towards maximum productivity. As the variety of profiles in the market has expanded, we have had to adapt our technology accordingly. "The Conturex concept immediately fascinated me," says Adi von Euw. The highly productive system with complete processing of even complex profiles in a single clamping enables switching from one order to another with no changeover. The system is also based upon a modular concept that enables customized solutions for every requirement. Von Euw's tripartite Conturex system comprises 6 portals. Processing is performed on two tracks in parallel, which are equipped with 16 tables. Four of these supply the processing units alternately with window parts. Profile splitting with one and the same tool configuration ensures a high throughfeed, which can also seamlessly accommodate immersion functions. The system produces Von Euw's entire product spectrum. This includes round arch production, angled assembly of window and lift-slide door elements as well as angled window constructions with angles of ± 75 degrees. The required 2 parts per minute can be processed effortlessly. "In principle, the concept even enables performance of more than 3 parts per minute," says WEINIG window expert Dieter van Dyck. The fully-automated system delivers this high output with one-man operation and in excellent quality. "We can fulfill almost any customer request with little effort," says Adi von Euw.
A meeting of quality fanatics (left to right): Fredy Dormann (WEINIG Holz-Her Schweiz), Klaus Müller (WEINIG Head of Marketing and Communication), Adi von Euw (Managing Director of Von Euw Fenster AG) and Dieter van Dyck (WEINIG Sales and Project Director)
"I never want to handle another workpiece manually"
Optimal automation is the stated objective of French window manufacturer Bader. Managing Director Patrick Kaltenbacher had correspondingly clear visions for his new production equipment.
As a qualified mechanical engineer, competitive quality and cost reduction are priorities for Patrick Kaltenbacher. Since taking the helm of the company in 2002, he has had one particular objective – unstaffed production. "I will be happy when we never have to handle another workpiece," says Patrick Kaltenbacher.
At the Messe Basel trade fair, he came across the WEINIG Conturex CNC processing center. Complete processing with milling, drilling and profiling of external notches in a single pass came very close to his vision of perfect production. However, he also wanted to incorporate warehouse logistics into the process. The WEINIG technicians configured the a portal charging system with vacuum suction for the Bader workshop. The systems takes the raw scantling from the stack and feeds it to the infeed mechanization of the cross-cut saw. A further request was the integration of glazing bead production into the overall process. This is where the innovative WEINIG glazing bead management came in. The WEINIG Powermat not only processes the scantlings on four sides, it also profiles the glazing beads with ship laps in the same throughfeed. The beads, which are sorted in a special carriage, can then be fed back into the remaining production process in a sorted condition.
The third highlight of the system is the tool cleaning. Tools are fed into the cleaning bath automatically to build-up of debris. This means system downtime. The system has only been running for a matter of months. However, Patrick Kaltenbacher is already full of praise. "It is the system I have wished for."
Englert Fensterbau - success with the WEINIG Conturex Compact
Window production in its 4th generation
Tradition and progress are two decisive elements that confront you at Englert-Fensterbau in Sachsenhausen. On the one hand, the workshop has been in business since 1889 and is now in its 4th generation and successfully managed by master glazier Hubert Englert. On the other hand, the business is growing steadily and is now active in the regional market, with 7 assistance glaziers and an apprentice.
In the Conturex CNC center, Weinig offers an established machine concept that can be flexibly tailored to the requirements of window manufacturers – from standardized to highly complex systems. According to an article in trade journal BM, 10.2014 issue:
Östringer Fenster + Türen
Östringer Fenster + Türen: Manufacturing like the big boys
Can small workshops still keep up when it comes to window and door production? Östringer answered this question in its own way: Their highly flexible CNC complete processing line practically dissolves the differences in performance between 'large and small'.
Tischlerei Kolb: Profitable production in a changing market
In the Bonn region, Kolb GmbH is part of the furniture. This is primarily attributable to the firm's interdisciplinary concept. The company adapts its window production precisely to the latest market requirements.
You have to believe in the future
Such was the title of the attached report on window production at Klarer.
Klarer Fenster AG has ordered a new production line. Why this makes sense and what the considerations were is explained by the management themselves.
(Source: website of Klarer Fenster AG, http://www.klarer.ch/home/)
Smooth series production needs a strong partner. Fensterwerk Schröder GmbH took its lessons from a crash.
Shock at Schröder in Hesel, North Germany: A self-inflicted breakdown of the automatic planer paralyzed wooden window production. “At that time Weinig Service helped during the night. That’s not something you don’t forget” says Manfred Fecht, the Timber Production Manager, remembering the occasion. So when it came to acquiring a modern profiling center, Weinig was at the top of the list. “Meeting deadlines is of primary importance for us. In addition, we needed a fast line which could be used to produce the roughly 40 systems we have with consistently high quality and with minimal manpower”, says Hendrik Schröder, explaining their requirements. The Conturex 124 in the 2nd generation was the perfect setup for them. They also invested in a Weinig optimizing cross-cut saw, which is linked up to the Conturex. The positive experience has proved the window specialists right: “I am impressed with the reliability of the line” says the Managing Director today. This is key, because Schröder GmbH makes full use of the Conturex capacity.
