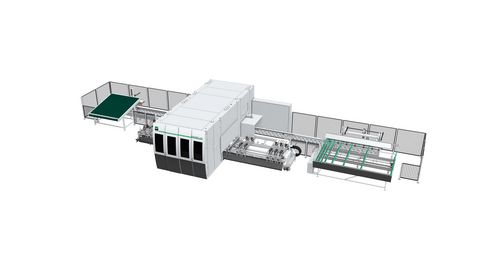

WEINIG Conturex 124 Surface: Rod and surface application in premium class
The Conturex124 with surface portal enables both standard processing of rod-shaped work pieces as well as the integration of surface processing into your production. This means you are equipped even for difficult applications, such as processing of door panels or glued round arches. During rod profiling, the surface table can be loaded in parallel. This ensures there are no interruptions in production. 100% machine utilization.
The Conturex 124 is equipped on the portal on both sides and offers space for four processing units. Unit configurations such as main spindle, 5-shaft head, uni-spindle, the WEINIG multi-spindle drill head or saw units meet every requirement in the mid-performance segment. By using two main spindles, two profiler processes can be carried out on the work piece at the same time in one cycle.
The Conturex 124 also has the same range of options as its colleagues 114 to 226. Mechanization systems for up to 3 hours of unstaffed production, measuring systems for veneered work pieces, scanners and laser projectors are only a part of the range of options.
The “multi-product capability” opens a host of possibilities. The unit can also efficiently manufacture products that are not related to windows and doors. Such as hinged shutters, casings and furniture and frame parts.
Safety – sound insulation – dust protection
The appearance and design of the Conturex reveal its cutting-edge technology. The elaborate full paneling concept takes consistent account of the high performance. This yields an exemplary level of safety with improved protection from dust and noise.
The controlled extraction directly adjacent to the work piece and on the tool is unique in the market. The machine functions without expensive chip removal and only requires minimum care.
5-axis head (option)
- 5-axis head for maximum flexibility
- Includes 24-slot tool holder
Universal spindle with 5-axis technology (optional)
- 12.5 kW (S6)
- 6 kg tool weight
- Max. 220 mm tool length
- Includes 17-slot tool holder
Multiple spindle drilling head
The WEINIG multiple spindle drilling head covers such window production applications as door handles, corner bearings and horizontal drilling, such as corner connections and marking drillings. The device enhances the performance and flexibility of the individual Conturex models.
External tool magazine (optional)
The external tool magazine has up to 170 tools slots depending on the model range.
