WEINIG Unimat 200: High quality for a low budget

WEINIG Unimat

The WEINIG Unimat series offers an excellent price-performance ratio combined with outstanding quality. This is even true of the Unimat 200 entry model. From the high-quality cast-iron frames to safe operation, the Unimat 200 features sophisticated technology that guarantees high levels of productivity. The standard version of the machine is highly sophisticated, allowing you to tackle all major challenges of day-to-day operation.

The Unimat 200 has been specially developed for operations that have to keep an eye on their budget but do not want to compromise on quality. It can also be used as a second machine for smaller batches. The WEINIG Unimat 200 - perfect work for a small investment.


The WEINIG Unimat series provides

Technical Details

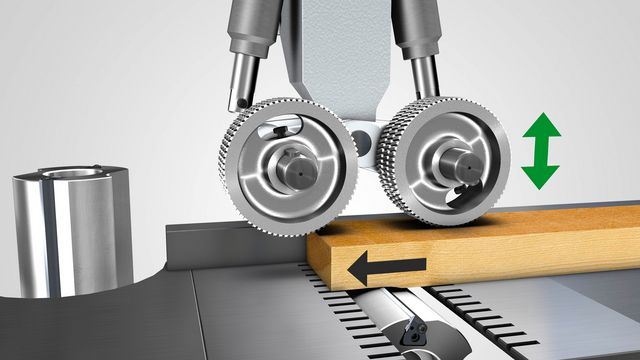

Straightening or surfacing

WEINIG Unimat

WEINIG technology allows you to plane crooked or bowed work pieces perfectly without retooling. The first feed roller has vertical pneumatic adjustment, so you can determine the proper setting to ensure the workpiece will come out of the machine straightened without the bow or surfaced with the bow.

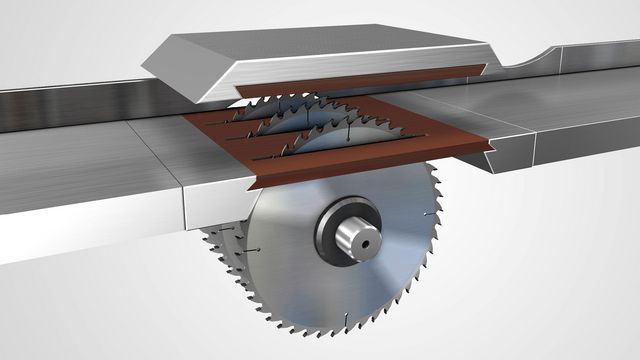

Splitting

WEINIG Unimat

Planing, profiling and sawing in one operation? Not a problem for the Unimat 200. The bottom spindle turns your machine into a multi-blade rip saw. The first bottom spindle creates a planed reference surface. The work piece is guided smoothly and accurately during ripping. This increases the service life of the saw blades.


Options for extension

WEINIG Unimat

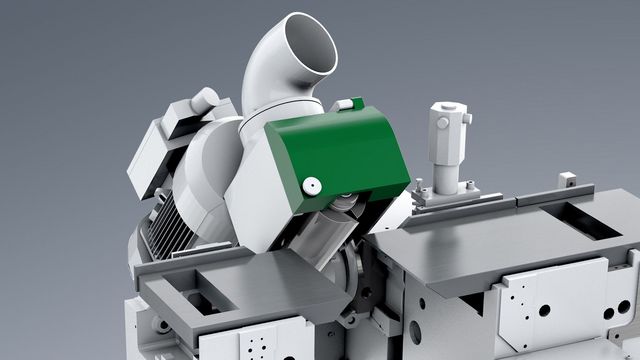

Universal spindle

Do you often have complex profiles to produce?

Learn more


WEINIG Unimat

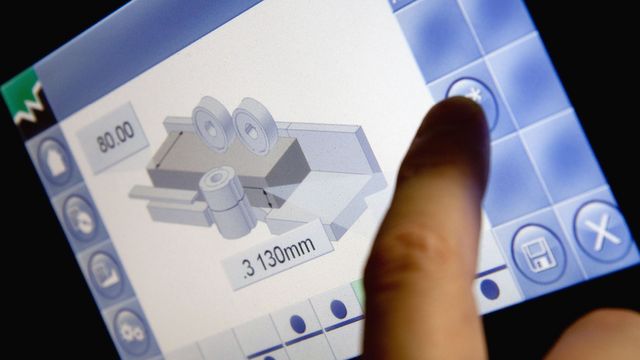

EasyCom

EasyCom is a compact PC control system with workpiece-oriented user guidance directly on the Unimat 200 and intuitive operation via touchscreen.

Learn more



Areas of application

Profiled mouldings

WEINIG Anwendungen

Our core competence



Profiling mouldings of all types has always been WEINIG’s core competence. Profiling includes a wide range of end products that nevertheless set the same challenges for machine technology: high levels of profile precision with excellent surface quality and regular cuttermarks.

WEINIG technology is always setting new standards in this area. The basis for this are the solid machine bases with precise machine tables and the fence at exactly the right angle to this. The superiority of the WEINIG machines is seen overall when dynamics are brought into the equation: spindles with high true running accuracy, a strong feed system and the corresponding pressure elements.

The perfect interaction of these components guarantees smooth transportation in a defined position through the machine. The result is the legendary WEINIG quality of your products: high profile precision, excellent surface quality and regular cuttermarks.

4 sides planed

WEINIG Anwendungen

Perfectly right-angled work pieces

Wood is a natural material and that influences the requirements that are involved for processing it. Wood can contain defects, it can be bent or warped. For many applications, therefore, e.g. for furniture, it is essential that the work pieces are planed on all four sides. The key thing here is that the work pieces are accurately straightened and that they have perfect angles after being processed.

This may sound easy, but in many cases it is not, because the production precision of the machine has a significant influence on the quality of the end product. You can always rely on the famous WEINIG quality. WEINIG offers many different solutions, from manual to fully automatic operation and from machines for occasional use to machines in continuous shift operation.


Further information

Downloads

Simple, fast and sustainable: more details in a downloadable PDF document.

Unimat series product brochure (PDF, 3 MB)

Technical data

Open table
