WEINIG Turbo-S 1000: The whole package for the highest performance and demands

WEINIG Kurzholzanlagen

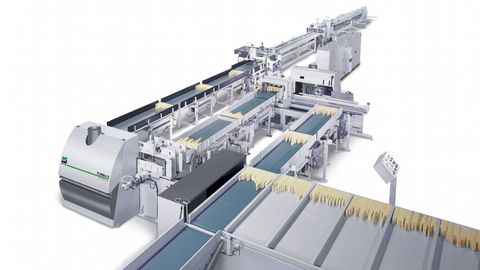

The patented shaper combination of the Turbo-S 1000 meets all your performance and quality needs. Two shapers connected by an intermediary belt work independently, offering top quality performance.

The modular design means the production line can be set up according to customer requirements. The system offers a variety of benefits including quality standards such as package monitoring, splinter protection and pre-scorers.


WEINIG finger jointing line for short timber pieces offers you

WEINIG Turbo-S 1000 offers you

  • Servo drive for the shaper table feed
  • Fully automatic system for the higher performance area
  • Shaper combination with many buffer places for highest performance
  • Universal system for all types of finger joint
  • Almost all types of glue can be used
  • Glue amount and glue application monitoring (optional)
  • Maximum performance up to 150 parts/min can be processed
  • Press performance for front-end press up to 12 cycles per minute
  • Operation, statistics and diagnostics function using touch panel
  • Inclusive teleservice (remote maintenance) for improved customer support

Technical Details

Vertical finger joint

Vertical profile

The vertical finger joint is the most frequently produced type of finger joint in the world. It provides the highest performance in a packaged finger jointing line. The vertical profile is mainly applied in constructive woodworking, but is also used for building windows and frames. It is has the largest glue surface and is therefore the most stable of all finger joints.

Horizontal finger joint

Positive-negative profile
Trapeze profile

Horizontal finger joints are mainly used in furniture construction. The shoulder profiles provide, for example, table plates that look like parquet where only the straight butt joints are visible.

The positive-negative profile is the second most common profile in a shaper combination because the system only needs to be equipped with three scoring units instead of four and produces high quality visible joints.

The trapeze profile is also called “American Profile” because this finger joint originates from the US and is usually delivered with a finger joint length of 1/4 inch.

Horizontal finger joint (special)

Half shoulder profile
Reverse shoulder profile

Both of these horizontal profiles are special profiles and are hardly used in ProfiJoint Combination because they only offer advantages with individual shaper lines.

The half shoulder profile can be run in manual and in fully automatic lines.

The reverse shoulder profile is mainly used for the simplest lines where, sometimes, no scoring unit is used.


Further information

Downloads

Simple, fast and sustainable: more details in a downloadable PDF document.

Product brochure Turbo-S 1000 (PDF, 1 MB)

Technical data

Open table
