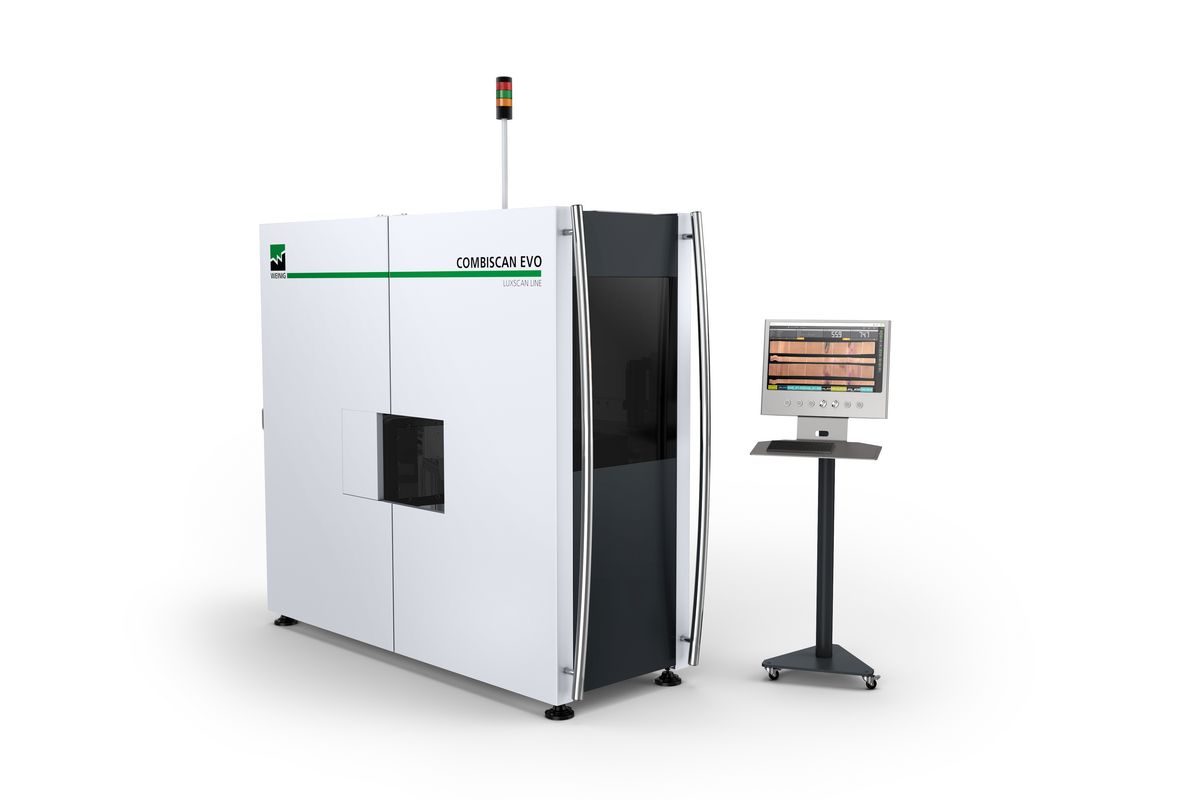

WEINIG CombiScan Evo series: Maximum performance and flexibility

The CombiScan Evo LuxscanLine series is the flagship of the WEINIG scanner portfolio. High-end sensors in a range of combinations create a perfect basis and fulfill every requirement of modern production processes. The CombiScan Evo opens up completely new optimization potential for your production. At the same time, the technology ensures optimal production control and transparency in the production process.

Optimal detection of the wood features is a decisive factor for expedient optimization of the raw material. All wood features differ in their individual characteristics and their detectability for the various scanners. The modular sensor concept of the scanner is inspired by this situation. This allows WEINIG to offer each customer a customized solution.

Simple optimization is the key to efficient production. The CombiScan Evo can be linked with various WEINIG machines, such as cross-cut saws, rip saws and sorting systems. The high-performance optimization allows a variety of qualities and zones to be created and combined into end products. Products and qualities are stored in the database and can be selected at any time via drag and drop. The logical user guidance of the scanner simplifies settings and can, therefore, be easily used by all personnel.

The modular design of the CombiScan Evo allows various technologies to be connected with each other as modules. In accordance with customer requirements, this produces a machine with a perfect sensor concept combined with a very good price-performance ratio. The integrated laser camera enables detection of standard wood features on up to 4 sides. Color features are recorded and reliably recognized with a high-resolution camera. Not only is it possible to detect blue stain, for example, it is also possible to optimally sort by color features. Lamellae for glued panels, for example, can be classified and sorted in this way before pressing.

An X-ray sensor is also used for features with varying thicknesses. This "fluoroscopy" on the wood enables the machine to look inside the timber and classify it according to density. Sensors for curvature measurement, humidity, unplaned areas etc. complete the picture together with special mechanization concepts. The scanner features automatic moving cameras, for example, for use with machining narrowing widths. This technology is unique in its design. Thanks to the available sensor concepts and modular design, the CombiScan Evo always remains future-proof and adaptable to new challenges in production.

The use of CombiScan Evo enables you to reduce labor costs while maintaining quality and increasing productivity and flexibility since the sorting criteria can be quickly and easily changed.

All machines

CombiScan Evo C

WEINIG CombiScan Evo

THE scanner for optimizing your cross-cutting

  • Increased recovery since the detection accuracy of the scanner is far superior to manual marking
  • Reduced labor costs, since labor-intensive manual marking is eliminated
  • Maximum productivity thanks to automated defect detection and optimization
  • More flexible production since many different qualities and products can be produced at the same time
  • Ability to control the quality of end products according to individual customers, etc.
Detail page  CombiScan Evo C

CombiScan Evo R

WEINIG CombiScan Evo

Ripping optimization with sense and purpose

  • Increased recovery since the detection accuracy of the scanner is far superior to manual cutting positioning
  • Increased recovery since two-dimensional optimization of the scanner can calculate optimized cross-cutting results
  • Reduced labor costs, since labor-intensive manual marking is eliminated
  • Maximum productivity thanks to automated defect detection and optimization
  • More flexible production since many different qualities and products can be produced at the same time
Detail page  CombiScan Evo R

CombiScan Evo S

WEINIG CombiScan Evo

Sorting at the highest level

  • Maximum productivity thanks to automated defect detection and sorting
  • Increased recovery since the detection accuracy of the scanner is far superior to manual sorting
  • Reduced labor costs, since labor-intensive manual sorting of the boards is eliminated
  • More flexible production since many different qualities and products can be produced at the same time
  • Ability to control the quality of end products according to individual customers, etc.
Detail page  CombiScan Evo S

The WEINIG CombiScan Evo series provides

  • Fast return on investment
  • Optimization of your products by value, utilization or production objective
  • Extensive statistical functions in real time
  • Compatible with all high-performance optimizing cross-cut saws, high-performance rip saws and sorting systems
  • Optional processing of boards with decreasing widths in one assignment
  • Surface scanning with laser and color cameras.
  • Optionally upgradable sensor concepts (X-ray technology, humidity and shape measurement and much more)
  • Complete defect detection: Unprocessed edges, branches, tears, pith, resin pockets, blue/red rot...
  • Tested industrial sensor technology
